Ball Screw Bearing Angular Contact Thrust Ball Bearing ISO Certification

1 pcs
MOQ
negotiation
Price
Ball Screw Bearing Angular Contact Thrust Ball Bearing ISO Certification
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: BS 20M47.P4A.UH
ID: 20mm
OD: 47mm
Height: 15mm
Weight: 0.2 Kgs
Precision: P4A
Application: Ball Screw
Origin: Germany
High Light:

Metric Ball Bearings

,

Angular Contact Bearing

Basic Infomation
Place of Origin: Germany
Brand Name: IBC
Certification: ISO
Model Number: BS 20M47.P4A.UH
Payment & Shipping Terms
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or PayPal
Supply Ability: 3,000pcs per month
Product Description

Ball Screw Bearing Angular Contact Thrust Ball Bearing ISO Certification



1. Specification:



Specification of Bearing

Bearing type

Angular contact ball bearing

Brand type

IBC

Precision Rating

Germany

Vibration

Z1V1,Z2V2,Z3V3

Durability

Long

Material

Bearing steel

Certificate

ISO9001:2008

Main market abroad

South America,USA,European,Southeast

Asia,Middle East

Packaging Details

1. inner:polyester bag outer:paper carton

2. industrial standard packing

3. Poly bag+box+packing

4. 4. as your order

Delivery Time

Within 3-5 days after receiving

your subscription

Payment Terms

T/T,Western Union,Paypal



2. Feature:

(1) Ball screw bearing

(2) P4A precision

(3) chrome steel rings and ceramic balls
(4) brass,steel or nylon cage





3. Anguar contact contact angle:

AC: 25 degree

B: 40 degree

C: 15 degree

A: 30 degress



4. Matching type:

DB: back to back

DF: face to face

DT: Series connect

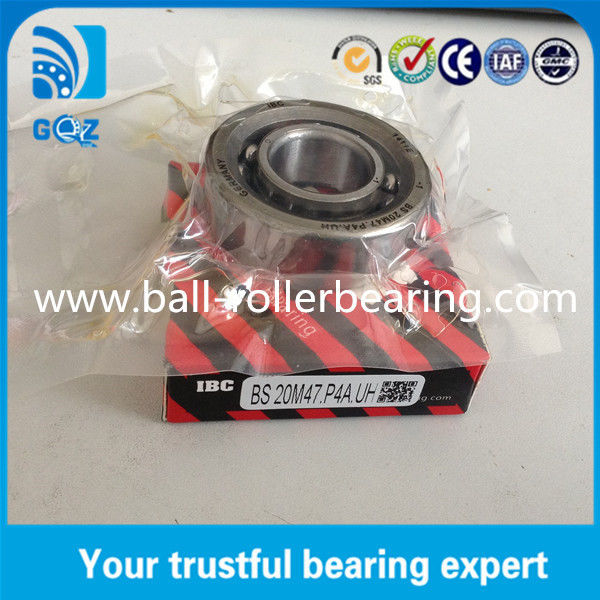

5. Bearing Picture:

Ball Screw Bearing Angular Contact Thrust Ball Bearing ISO Certification 0

Ball Screw Bearing Angular Contact Thrust Ball Bearing ISO Certification 1

Ball Screw Bearing Angular Contact Thrust Ball Bearing ISO Certification 2

Ball Screw Bearing Angular Contact Thrust Ball Bearing ISO Certification 3

Ball Screw Bearing Angular Contact Thrust Ball Bearing ISO Certification 4



6. Other IBC Ball Screws Bearings we supply:

IBC BS 17M47.P4A.UM

IBC BS 20M47.P4A.UM

IBC BS 20M47/14.P4A.UM

IBC BS 25M52.P4A.UM

IBC BS 25M62.P4A.UM

IBC BS 25M62/17.P4A.UM

IBC BS 30M62/16.P4A.UM

IBC BS 30M62 P4A.UM

IBC BS 30M72.P4A.UM

IBC BS 30M72/19 P4A.UM

IBC BS 35M72 P4A.UM

IBC BS 35M72/17P4AUM

IBC BS 35M100.P2H.UM

IBC BS 40M72.P4A.UM

IBC BS 40M100 P2H.UM

IBC BS 45M75.P2H.UM

IBC BS 45M75.P2H.DUM

IBC BS 50M100 P2H.UM

IBC BS 55M90.P2H.UM

IBC BS 55M120.P2H.UM

IBC BS 60M120.P2H.UM

IBC BS 75M110.P2H.UM

IBC BS 100M150.P2H.UM

IBC BS 100M150.P4A.UM

IBC BS 20M47 2RSZ.P4A.UM

IBC BS 25M52 2RSZ.P4A.UM

IBC BS 25M62 2RSZ.P4A.UM

IBC BS 30M62 2RSZ.P4A.UM

IBC BS 35M72 2RSZ.P4A.UM





7. We also supply following high precision angular contact ball bearing:

Bearing No.

d(mm)

D(mm)

B(mm)

H708C-2RZ P4 HQ1

8

22

7

H709C-2RZ P4 HQ1

9

24

7

H7000C-2RZ P4 HQ1

10

26

8

H7001C-2RZ P4 HQ1

12

28

8

H7002C-2RZ P4 HQ1

15

32

9

H7003C-2RZ P4 HQ1

17

35

10

H7004C-2RZ P4 HQ1

20

42

12

H7005C-2RZ P4 HQ1

25

47

12

H7006C-2RZ P4 HQ1

30

55

13

H7007C-2RZ P4 HQ1

35

62

14

H7008C-2RZ P4 HQ1

40

68

15

H7009C-2RZ P4 HQ1

45

75

16

H7010C-2RZ P4 HQ1

50

80

16

H7011C-2RZ P4 HQ1

55

90

18

H7012C-2RZ P4 HQ1

60

95

18

H7013C-2RZ P4 HQ1

65

100

18

H7014C-2RZ P4 HQ1

70

110

20

H7015C-2RZ P4 HQ1

75

115

20

H7016C-2RZ P4 HQ1

80

125

22

H7017C-2RZ P4 HQ1

85

130

22

H7018C-2RZ P4 HQ1

90

140

24

H7019C-2RZ P4 HQ1

95

145

24

H7020C-2RZ P4 HQ1

100

150

24
