| الـ MOQ: | 1 pcs |
| السعر: | $25 / pcs |
| العبوة القياسية: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| فترة التسليم: | 3 working days after received your payment |
| طريقة الدفع: | T/T or western Union or PayPal |
| قدرة التوريد: | 3,000pcs per month |

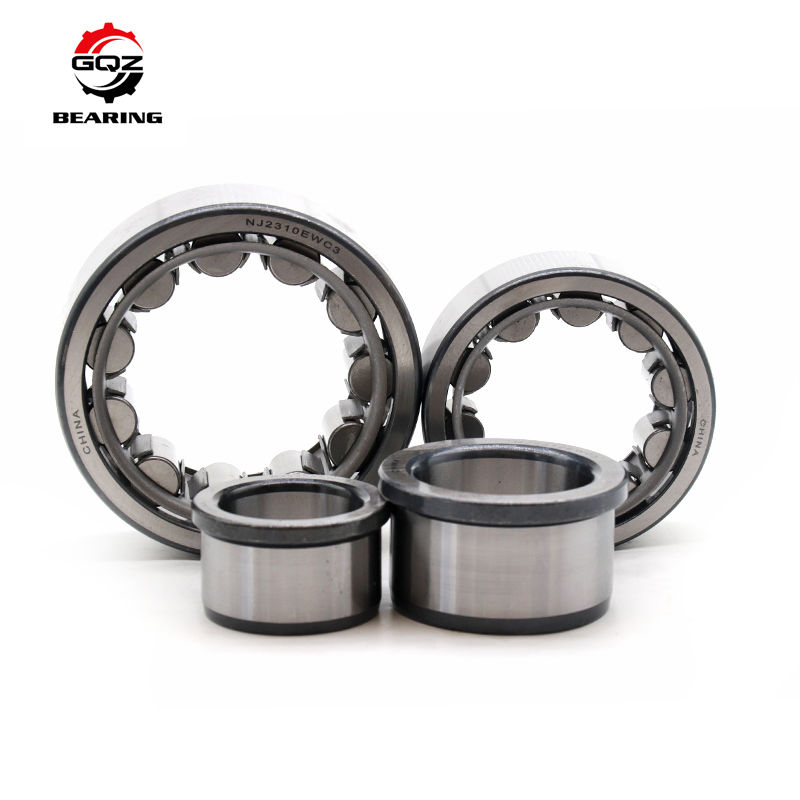

The NJ324E.M1.C4.F1 FAG is a single-row cylindrical roller bearing with cage. This bearing consists of a solid inner and outer ring with cylindrical rollers in a cage. This cage prevents contact between the cylinder rollers, so this bearing type can support higher speeds than full-complement cylinder roller bearings. Also, single-row cylindrical roller bearings with cages are very rigid and they can take high radial forces. As the inner and outer rings of these bearings can be easily disassembled, they are very easy to install. Applications of single-row cylindrical roller bearings include gearboxes, agricultural machinery, pumps, compressors, and electric motors.
Our technical parameters
| new modle | old modle | d | D | width (mm) |
Cr | Cor | weight |
| (mm) | (mm) | (kN) | (kN) | (kg) | |||
| NU2206E | 32506E | 30 | 62 | 20 | 45.5 | 48 | 0.268 |
| NU306E | 32306E | 30 | 72 | 19 | 49.2 | 48.2 | 0.377 |
| NU2306E | 32606E | 30 | 72 | 27 | 70 | 75.5 | 0.538 |
| NU406 | 32406 | 30 | 90 | 23 | 57.2 | 53 | 0.73 |
| NU1007 | 32107 | 35 | 62 | 14 | 19.5 | 18.8 | 0.16 |
| NU207E | 32207E | 35 | 72 | 17 | 46.5 | 48 | 0.311 |
| NU2207E | 32507E | 35 | 72 | 23 | 57.5 | 63 | 0.414 |
| NU307E | 32307E | 35 | 80 | 21 | 62 | 63.2 | 0.501 |
| NU2307E | 32607E | 35 | 80 | 31 | 87.5 | 98.2 | 0.738 |
| NU407 | 32407 | 35 | 100 | 25 | 70.8 | 68.2 | 0.94 |
| NU1008 | 32108 | 40 | 68 | 15 | 21.2 | 22 | 0.22 |
| NU208E | 32208E | 40 | 80 | 18 | 51.5 | 53 | 0.394 |
| NU2208E | 32508E | 40 | 80 | 23 | 67.5 | 75.2 | 0.507 |
| NU308E | 32308E | 40 | 90 | 23 | 76.8 | 77.8 | 0.68 |
| NU2308E | 32608E | 40 | 90 | 33 | 105 | 118 | 0.974 |
Our Services
3. Some samples are free
