| الاسم التجاري: | GQZ |
| رقم الموديل: | JXR652050 |
| الـ MOQ: | 5 قطعة |
| السعر: | قابل للتفاوض |
| موعد التسليم: | 3 أيام عمل بعد استلام دفعتك |
| شروط الدفع: | T/T أو Western Union أو PayPal |

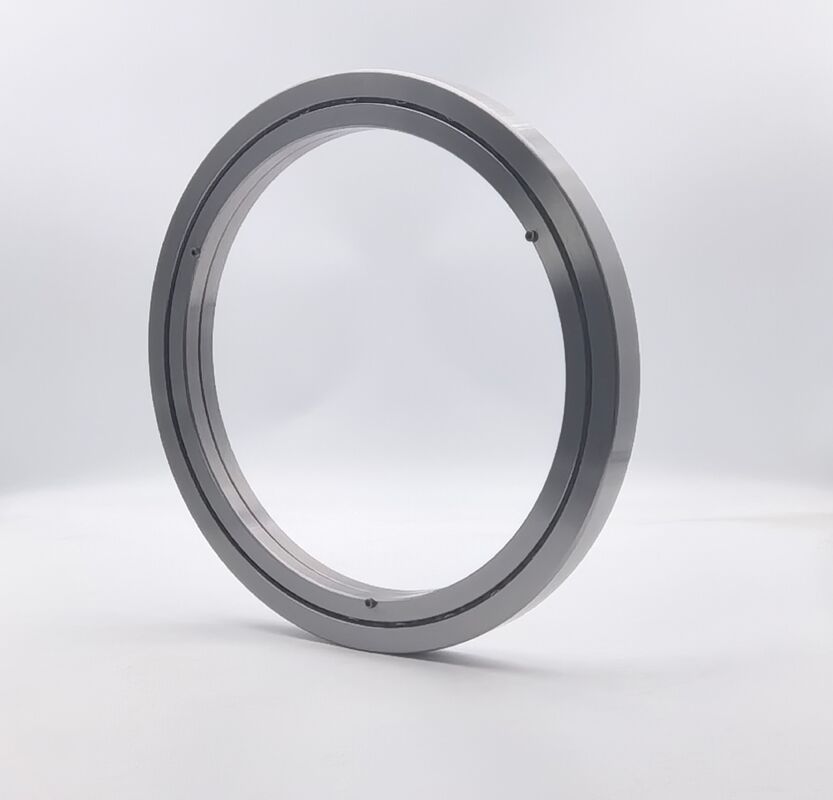

JXR652050 Cross Tapered Roller Bearing 310x425x45mm | High Precision Bearing for Robotics & CNC Applications
The JXR652050 Cross Tapered Roller Bearing is a high-precision bearing designed for robotics, CNC machines, and advanced automation systems. With dimensions of 310mm inner diameter, 425mm outer diameter, and 45mm width, it delivers excellent rigidity, smooth rotation, and stable load performance.
Engineered for demanding industrial environments, this bearing ensures precise motion control, high repeatability, and long service life, making it ideal for high-end applications.
| Parameter | JXR652050 |
|---|---|
| Model | JXR652050 |
| Inner Diameter (ID) | 310 mm |
| Outer Diameter (OD) | 425 mm |
| Width (H) | 45 mm |
| Type | Cross Tapered Roller Bearing |
| Structure | Crossed Tapered Rollers |
| Material | Bearing Steel |
| Preload | Custom |
| Accuracy Class | P5 / P4 optional |
| Application | Robotics, CNC Machines, Automation Systems |
| Timken | KG | d | D | B | r | Cr (KN) | Co (KN) | Cr (KN) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| - | 4.9 | 150 | 230 | 30 | 1 | 95.2 | 156 | 111 | 279 | 1100 |
| - | 5.15 | 160 | 240 | 30 | 1.1 | 96.8 | 162 | 118 | 300 | 1000 |
| - | 6.7 | 200 | 280 | 30 | 1.5 | 102 | 175 | 120 | 320 | 9000 |
| XR496051 | 5.59 | 203.2 | 279.4 | 31.75 | 1.5 | 110 | 188 | 134 | 348 | 850 |
| XR496052 | 5.59 | 203.2 | 279.4 | 31.75 | 1.5 | 110 | 188 | 134 | 348 | 850 |
| - | 5.4 | 240 | 300 | 30 | 1 | 88 | 184 | 114 | 361 | 750 |
| - | 4.5 | 250 | 310 | 25 | 1 | 88 | 188 | 114 | 361 | 700 |
| - | 13 | 250 | 350 | 40 | 1.3 | 187 | 355 | 228 | 657 | 670 |
| JXR637050 | 12.5 | 300 | 400 | 36.492 | 1.5 | 183 | 355 | 223 | 657 | 560 |
| JXR637050 | 12.5 | 300 | 400 | 37 | 1.5 | 183 | 355 | 223 | 657 | 560 |
| JXR678054 | 38 | 300 | 480 | 60 | 1.5 | 258 | 495 | 35 | 920 | 600 |
| JXR652050 | 19.5 | 310 | 425 | 45 | 2.5 | 216 | 427 | 281 | 837 | 640 |
| JXR678052 | 32 | 330.2 | 457.2 | 63.5 | 3.3 | 264 | 515 | 312 | 954 | 620 |
| - | 27 | 350 | 470 | 50 | 3.3 | 308 | 635 | 376 | 1180 | 560 |
| JXR699050 | 30 | 370 | 495 | 50 | 3.3 | 93.6 | - | 119 | - | 600 |
| - | 15 | 400 | 480 | 40 | 1.1 | 216 | 497 | 281 | 957 | 430 |
| - | 46.5 | 400 | 550 | 60 | 2.5 | 429 | 920 | 523 | 1700 | 400 |
| XR736052 | 27.5 | 432.003 | 571.5 | 38.1 | 3.3 | 83 | 910 | 530 | 1600 | 400 |
| JXR766051 | 51 | 457.2 | 609.6 | 63.5 | 3.3 | 396 | 856 | 514 | 1680 | 420 |
| JXR766052 | 62 | 424.95 | 614.924 | 65 | 3.3 | 470 | 960 | 600 | 1720 | 380 |
| JXR820060 | 100 | 580 | 760 | 80 | 3.3 | 627 | 1380 | 765 | 2560 | 300 |
| JXR820061 | 100 | 580 | 760 | 80 | 6.4 | 627 | 1380 | 765 | 2560 | 300 |
| JXR836050 | 148 | 600 | 830 | 80 | 6.4 | 680 | 1460 | 820 | 2870 | 300 |
| JXR8444050 | 150 | 685.8 | 914.4 | 79.375 | 6.4 | 693 | 1660 | 900 | 3250 | 260 |
| JXR855053 | 150 | 685.8 | 914.4 | 79.375 | 3.3 | 693 | 1660 | 900 | 3250 | 260 |
| JXR855056 | 150 | 685.8 | 914.4 | 79.375 | 3.3 | 693 | 1660 | 900 | 3250 | 260 |
| JXR882054 | 185 | 901.7 | 1117.6 | 82.555 | 3 | 781 | 2060 | 1060 | 4290 | 200 |
| JXR882055 | 185 | 901.7 | 1117.6 | 82.555 | 3.3 | 781 | 2060 | 1060 | 4290 | 200 |
| JXR882058 | 158 | 939.8 | 1117.6 | 82.55 | 3 | 920 | 2580 | 1200 | 5000 | 200 |
| - | 215 | 950 | 1170 | 85 | 3 | 968 | 2690 | 1310 | 5600 | 215 |
| JXR889058 | 430 | 1028.7 | 1327.15 | 114.3 | 3.3 | 1230 | 3310 | 1600 | 6490 | 430 |
| JXR889059 | 358 | 1028.7 | 1327.15 | 95.25 | 3.3 | 1060 | 3100 | 1420 | 6020 | 450 |
| JXR889060 | 430 | 1028.7 | 1327.15 | 114.3 | 3.3 | 1230 | 3310 | 1600 | 6490 | 430 |
| - | 350 | 1270 | 1524 | 95.25 | 3.3 | 1300 | 3830 | 1760 | 2980 | 95 |
| JXR897051 | 500 | 1549.4 | 1828.8 | 101.6 | 3.3 | 1400 | 4510 | 1890 | 9400 | 80 |
| - | 675 | 1879.6 | 2197.1 | 101.6 | 5.4 | 1510 | 5240 | 2040 | 10900 | 43 |
| - | 1130 | 2463.8 | 2819.4 | 114.3 | 5.4 | 2330 | 8740 | 3150 | 18200 | 18200 |
Q1: Is JXR652050 suitable for robotic applications?
A1: Yes, it provides high rigidity and precision required for robot joints.
Q2: Can this bearing be used in CNC machines?
A2: Yes, it ensures stable rotation and accurate machining performance.
Q3: Do you support customization?
A3: Yes, we offer customization for preload, precision grade, and materials.
Enhance your system performance with JXR652050 Cross Tapered Roller Bearing.
Contact GQZ Bearing today for pricing, samples, or technical consultation!
