| الاسم التجاري: | GQZ |
| رقم الموديل: | XSU140414 |
| الـ MOQ: | 5 قطعة |
| السعر: | $190-$209 |
| موعد التسليم: | 3 أيام عمل بعد استلام دفعتك |
| شروط الدفع: | T/T أو Western Union أو PayPal |

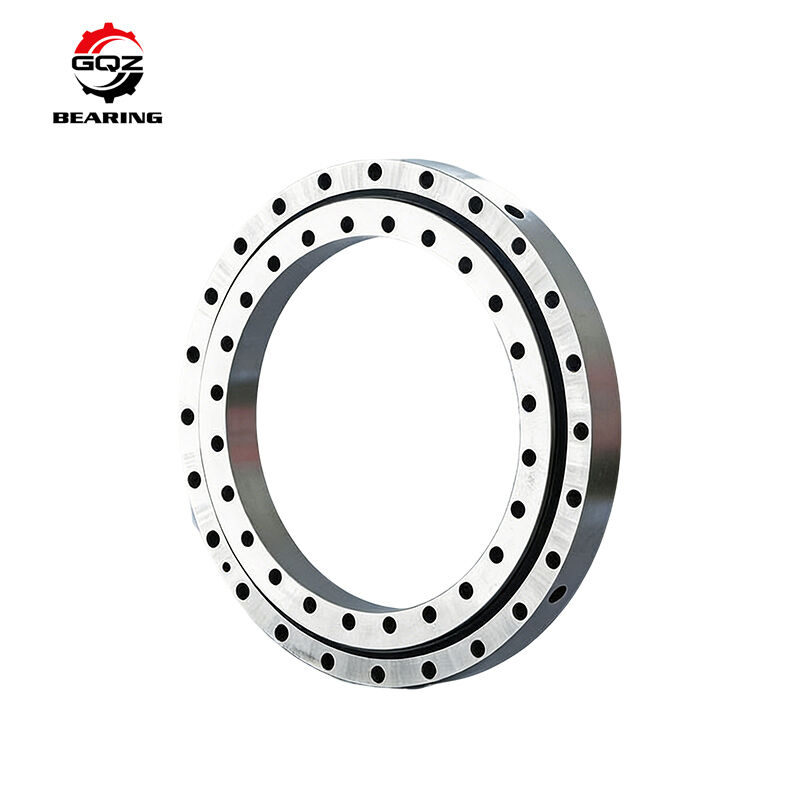

The XSU140414 Slewing Ring Bearing is a high-precision cross roller cylindrical bearing designed for CNC machinery parts, rotary tables, and industrial automation systems. With dimensions of 344mm inner diameter, 484mm outer diameter, and 56mm width, it offers compact structure, high rigidity, and excellent rotational accuracy.
Featuring a crossed cylindrical roller design, this bearing ensures smooth motion and stable load distribution, making it ideal for applications requiring precision and reliability.
| Parameter | Specification |
|---|---|
| Model | XSU140414 |
| Inner Diameter (ID) | 344 mm |
| Outer Diameter (OD) | 484 mm |
| Width (H) | 56 mm |
| Type | Slewing Ring Bearing |
| Structure | Crossed Cylindrical Rollers |
| Material | Bearing Steel |
| Accuracy Class | P5 / P4 optional |
| Preload | Custom |
| Application | CNC Machinery Parts, Rotary Tables, Automation Equipment |
| INA | Weight (Kg) | Da | di | La | ni/na | Li | Di | da | A | B | C | D | Preload |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XSU140414N | 28 | 484 | 344 | 460 | 24 | 468 | 415 | 413 | 0.04 | 0.04 | 0.06 | 0.06 | 0.01-0.03 |
| XSU140544N | 38 | 614 | 474 | 590 | 32 | 598 | 545 | 543 | 0.04 | 0.04 | 0.07 | 0.06 | 0.01-0.03 |
| XSU140644N | 44 | 714 | 574 | 690 | 36 | 698 | 645 | 643 | 0.05 | 0.05 | 0.08 | 0.07 | 0.01-0.04 |
| XSU140744N | 52 | 814 | 674 | 790 | 40 | 798 | 745 | 743 | 0.05 | 0.05 | 0.09 | 0.08 | 0.01-0.04 |
| XSU140844N | 60 | 914 | 774 | 890 | 40 | 898 | 845 | 843 | 0.06 | 0.06 | 0.09 | 0.09 | 0.01-0.04 |
| XSU140944N | 67 | 1014 | 874 | 990 | 44 | 998 | 945 | 943 | 0.06 | 0.06 | 0.11 | 0.09 | 0.01-0.05 |
| XSU141094N | 77 | 1164 | 1024 | 1140 | 48 | 1148 | 1095 | 1093 | 0.07 | 0.07 | 0.11 | 0.11 | 0.01-0.05 |
Q1: What type of bearing is XSU140414?
A1: It is a slewing ring bearing with crossed cylindrical roller structure.
Q2: Is it suitable for CNC machinery?
A2: Yes, it is designed for high-precision CNC and automation systems.
Q3: Do you offer customization?
A3: Yes, we support customization for preload, accuracy class, and materials.
Upgrade your CNC system with XSU140414 Slewing Ring Cross Roller Bearing.
Contact GQZ Bearing today for pricing, samples, or technical consultation!
