| الاسم التجاري: | GQZ |
| رقم الموديل: | XSU140944 |
| الـ MOQ: | 5 قطعة |
| السعر: | $1209-$1230 |
| موعد التسليم: | 3 أيام عمل بعد استلام دفعتك |
| شروط الدفع: | T/T أو Western Union أو PayPal |

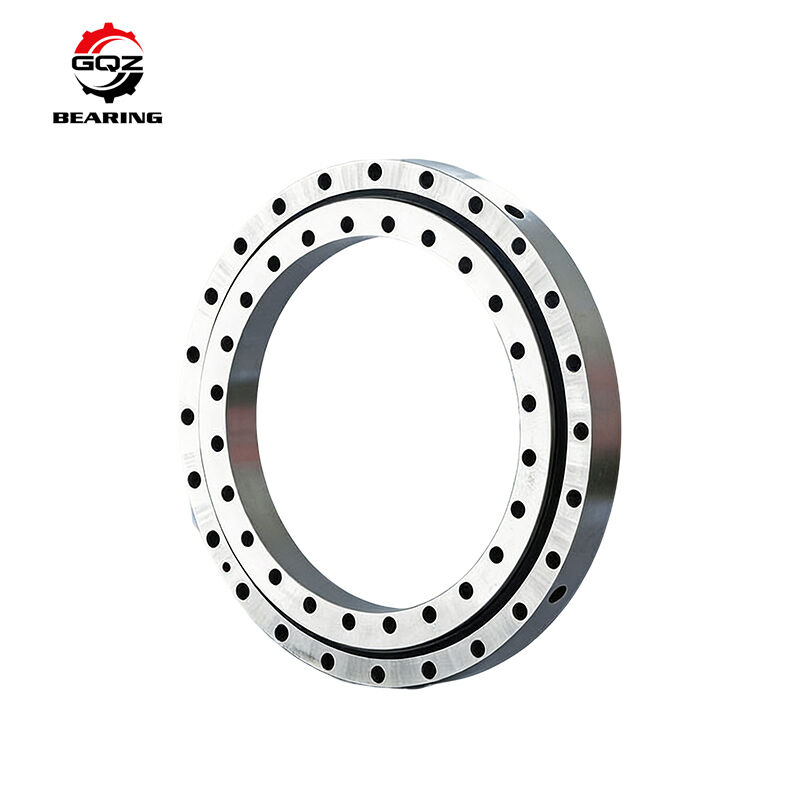

The XSU1410944 Slewing Bearing is a high precision cross cylindrical roller bearing designed for CNC machine parts, rotary tables, industrial automation, and heavy-duty equipment. With dimensions of 1024x1164x56mm, this large slewing bearing delivers smooth rotation, high rigidity, and excellent load capacity.
Featuring a cross roller structure, it supports radial, axial, and moment loads simultaneously, making it ideal for CNC machinery, turntable bearings, and precision positioning systems.
This cross roller slewing bearing offers compact design, stable performance, and long service life, widely used in CNC equipment, automation systems, robotics, and industrial machinery applications.
| Parameter | Specification |
|---|---|
| Model | XSU1410944 |
| Inner Diameter (ID) | 1024 mm |
| Outer Diameter (OD) | 1164 mm |
| Width (H) | 56 mm |
| Type | Slewing Bearing |
| Structure | Crossed Cylindrical Rollers |
| Material | Bearing Steel |
| Accuracy Class | P5 / P4 optional |
| Preload | Custom |
| Application | CNC Machine Parts, Rotary Tables, Automation Systems |
| INA | Weight (Kg) | Da | di | La | ni/na | Li | Di | da | A | B | C | D | Preload |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XSU140414N | 28 | 484 | 344 | 460 | 24 | 468 | 415 | 413 | 0.04 | 0.04 | 0.06 | 0.06 | 0.01-0.03 |
| XSU140544N | 38 | 614 | 474 | 590 | 32 | 598 | 545 | 543 | 0.04 | 0.04 | 0.07 | 0.06 | 0.01-0.03 |
| XSU140644N | 44 | 714 | 574 | 690 | 36 | 698 | 645 | 643 | 0.05 | 0.05 | 0.08 | 0.07 | 0.01-0.04 |
| XSU140744N | 52 | 814 | 674 | 790 | 40 | 798 | 745 | 743 | 0.05 | 0.05 | 0.09 | 0.08 | 0.01-0.04 |
| XSU140844N | 60 | 914 | 774 | 890 | 40 | 898 | 845 | 843 | 0.06 | 0.06 | 0.09 | 0.09 | 0.01-0.04 |
| XSU140944N | 67 | 1014 | 874 | 990 | 44 | 998 | 945 | 943 | 0.06 | 0.06 | 0.11 | 0.09 | 0.01-0.05 |
| XSU141094N | 77 | 1164 | 1024 | 1140 | 48 | 1148 | 1095 | 1093 | 0.07 | 0.07 | 0.11 | 0.11 | 0.01-0.05 |
A1: It is a slewing bearing with crossed cylindrical roller structure.
A2: Yes, it is designed for high-precision CNC and automation systems.
A3: Yes, we support customization for preload, accuracy class, and materials.
Upgrade your system with XSU1410944 Cross Roller Slewing Bearing.
Contact GQZ Bearing today for pricing, samples, or technical consultation!
