| الاسم التجاري: | TIMKEN |
| رقم الموديل: | XU220460 |
| الـ MOQ: | 5 قطعة |
| السعر: | $130 ~ $220 |
| موعد التسليم: | 5-8 أيام عمل بعد تلقي دفعتك |
| شروط الدفع: | د/أ، د/ف، تي/تي |

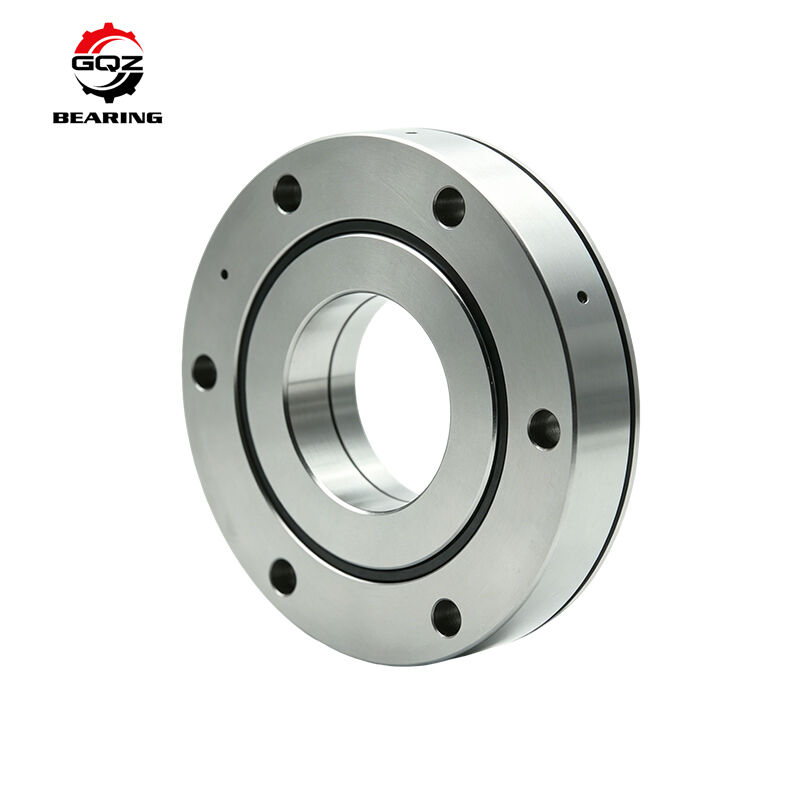

The XU220460 crossed roller slewing bearing is designed for high-rigidity rotation systems in CNC equipment and turret applications.
With a larger size and reinforced structure, it provides enhanced load capacity, stable rotation, and precise positioning, making it suitable for demanding industrial environments.
Get a quotation within 24 hours for your project.
Applications
This crossed roller bearing is widely used in:
Suitable for applications requiring high rigidity, accurate positioning, and stable rotation under load.
Key Advantages
Improves machining accuracy and system stability in CNC equipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | XU220460 |
| Inner Diameter (ID) | 356 mm |
| Outer Diameter (OD) | 568 mm |
| Width | 64 mm |
| Structure | Crossed Roller Slewing Bearing |
| Gear Type | Without Gear |
| Material | High-quality Bearing Steel |
| Application | CNC Turret / Automation Equipment |
| Customization | Available |
Detailed drawings and customized specifications are available upon request.
Related Models for Selection
| INA | Weight (Kg) | Da | di | La | dB | na | Li | H | h | da | Di | ds | ts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XU05.0077 | 1.4 | 112 | 40 | 97 | 6.6 | 6 | 56 | 22 | 21 | 74 | 77.5 | 11 | 5.5 |
| XU06.0094 | 2.4 | 140 | 57 | 120 | 9 | 6 | 70 | 26 | 25 | 93.4 | 94.6 | 15 | 6 |
| XU06.0111 | 1.2 | 145.79 | 76.2 | 133.1 | 6.9 | 8 | 88.9 | 15.87 | 15.87 | - | 111.8 | 11 | 6.35 |
| XU08.0120 | 4 | 170 | 69 | 177.8 | 9 | 6 | 90 | 30 | 29 | 119.4 | 120.6 | 15 | 9 |
| XU08.0149 | 3.6 | 196.85 | 101.6 | 147.8 | 6.9 | 16 | 115.8 | 22.22 | 22.22 | - | 149.6 | 11 | 6.35 |
| XU12.0179 | 7 | 234 | 124.5 | 214 | 11 | 12 | 144.5 | 35 | 30 | 178 | 180 | - | - |
| XU12.0222 | 12 | 300 | 140 | 270 | 16 | 12 | 170 | 36 | 30 | 220 | 222 | - | - |
| XU16.0220 | 16 | 302 | 138 | 270 | 18 | 10 | 170 | 46 | 41 | 219 | 221 | - | - |
| XU16.0260 | 15 | 329 | 191 | 305 | 14 | 20 | 215 | 46 | 41 | 259 | 261 | - | - |
| XU08.0264 | 6.9 | 311 | 215.9 | 295.3 | 8.7 | 12 | 231.8 | 25.4 | 25.4 | 263.4 | 264.6 | 13.7 | 8.6 |
| XU18.0380 | 45 | 485 | 275 | 453 | 18 | 16 | 307 | 55 | 50 | 379 | 381 | - | - |
| XU16.0405 | 25 | 474 | 336 | 450 | 14 | 30 | 360 | 46 | 41 | 404 | 406 | - | - |
| XU08.0430 | 12 | 480 | 380 | 462 | 9 | 20 | 398 | 26 | 26 | 429.4 | 430.6 | 15 | 9 |
| XU18.0412 | 40 | 501 | 324 | 469 | 18 | 18 | 356 | 55 | 50 | 411 | 413 | - | - |
| XU18.0433 | 42 | 522 | 344 | 4190 | 18 | 20 | 376 | 55 | 50 | 432 | 434 | - | - |
| XU22.0460 | 64 | 568 | 356 | 524 | 22 | 18 | 396 | 64 | 59 | 459 | 461 | - | - |
| XU18.0475 | 46 | 562 | 388 | 530 | 18 | 20 | 420 | 55 | 50 | 474 | 476 | - | - |
| XU30.0515 | 115 | 646 | 384 | 598 | 26 | 18 | 432 | 86 | 79 | 514 | 516 | - | - |
| XU24.0545 | 94 | 655 | 435 | 615 | 22 | 24 | 475 | 79 | 72 | 544 | 546 | - | - |
| XU22.0574 | 82 | 680 | 468 | 640 | 22 | 20 | 508 | 68 | 61 | 573 | 575 | - | - |
| XU30.0586 | 115 | 704 | 468 | 664 | 22 | 18 | 508 | 86 | 79 | 585 | 587 | - | - |
| XU28.0680 | 120 | 798 | 565 | 755 | 22 | 30 | 605 | 79 | 72 | 679 | 681 | - | - |
| XU30.0785 | 155 | 900 | 670 | 860 | 22 | 36 | 710 | 86 | 79 | 784 | 786 | - | - |
| XU26.0823 | 140 | 933 | 713 | 893 | 22 | 36 | 753 | 79 | 72 | 822 | 824 | - | - |
| XU16.0897 | 67 | 976 | 818 | 944 | 18 | 36 | 850 | 50 | 43 | 896 | 898 | - | - |
Not sure which model fits your application? Contact us for selection support.
Why Choose GQZ Bearing
We help customers ensure precision, reliability, and long-term performance.
Quality Control
Ensuring consistent quality for every bearing.
Get a Quote Now
Looking for a reliable slewing bearing supplier?
Send your inquiry today to get:
Click “Chat Now" to contact us directly.
FAQ
Q1: Is this bearing suitable for turret applications?
Yes, XU220460 is designed for CNC turret systems and indexing mechanisms.
Q2: Can it handle heavy loads while maintaining precision?
Yes, it offers high rigidity and stable performance under medium to heavy loads.
Q3: Do you support customization?
Yes, customization is available based on technical drawings and working conditions.
